WHY MATRIX?
Drives Down Cost
Save up to 30% of your tool spend by implementing continuous method improvement, reduced stock, less waste and a leaner system that automates mundane tasks performed manually.
Guaranteed Production Output
MATRIX reduces the risks of stock outs to keep your production.
Optimize Stock Levels
MATRIX reduces excess/dead stock by 10-40% whilst maintaining MAXIMUM availability with MINIMUM stock.
Streamline Purchasing
MATRIX eliminates manual purchasing tasks saving up to 50% in procurement overheads.
Always the Right Tools for the Job
MATRIX ensures that only authorized tools can be accessed per job, eliminating costly mistakes and scrapped parts.
Featured Specs
Comprehensive Application to Manage Your Entire Stock of Tools, Gauges & MRO, Whether in a Matrix Cabinet or Regular Warehouse
- Full item & supplier maintenance including prices, stock levels, locations, technical data and usage history.
- A Complete suite of standard and advanced reports
- Analyzer dashboard and item analytics provide overview of key performance indicators (KPIs)
- Automatic calculation of re-order points and purchasing
- A Sophisticated planning engine ensures maximum availability with minimum stock
- Tracks serial items and gauge calibration
- Multi-language user interface
- View and save in Excel, HTML, PDF and other formats
- Automatic delivery by email
- Export/Import interface with ERP systems
- CPU and tool life calculator

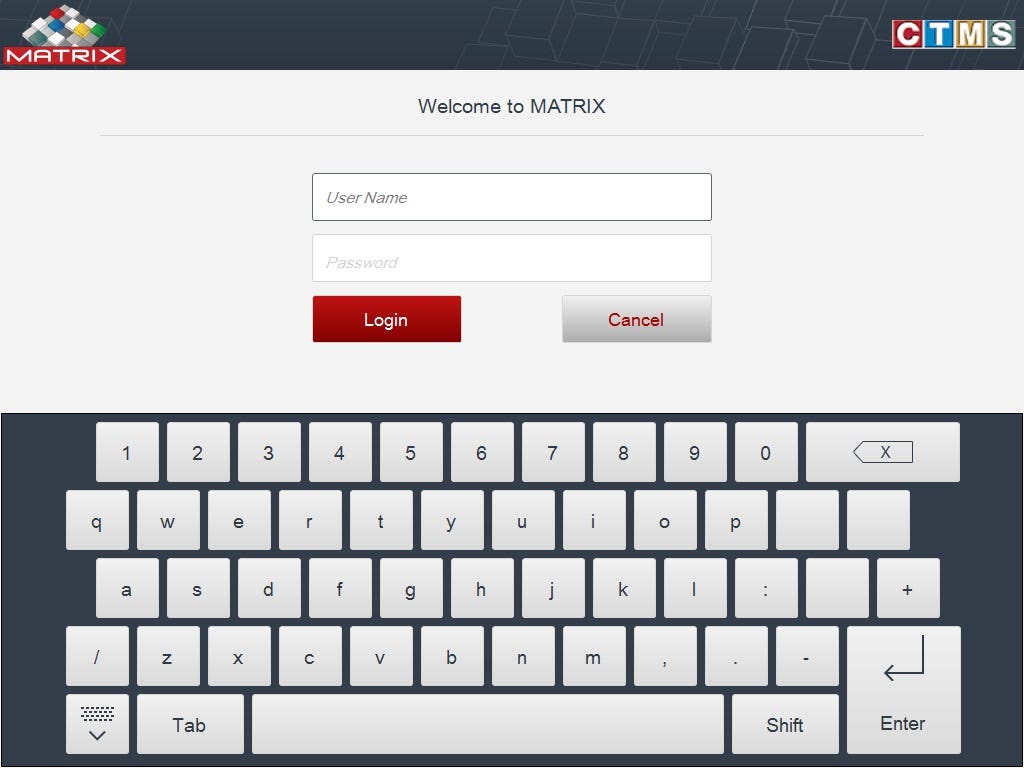

Touch Features
Simple & Intuitive touchscreen application that drives an entire family of MATRIX cabinets. Access to your cutting tools & MRO is now just a touch away.
1. Flexible Search
Search by List, Favorites, Groups or Pictures

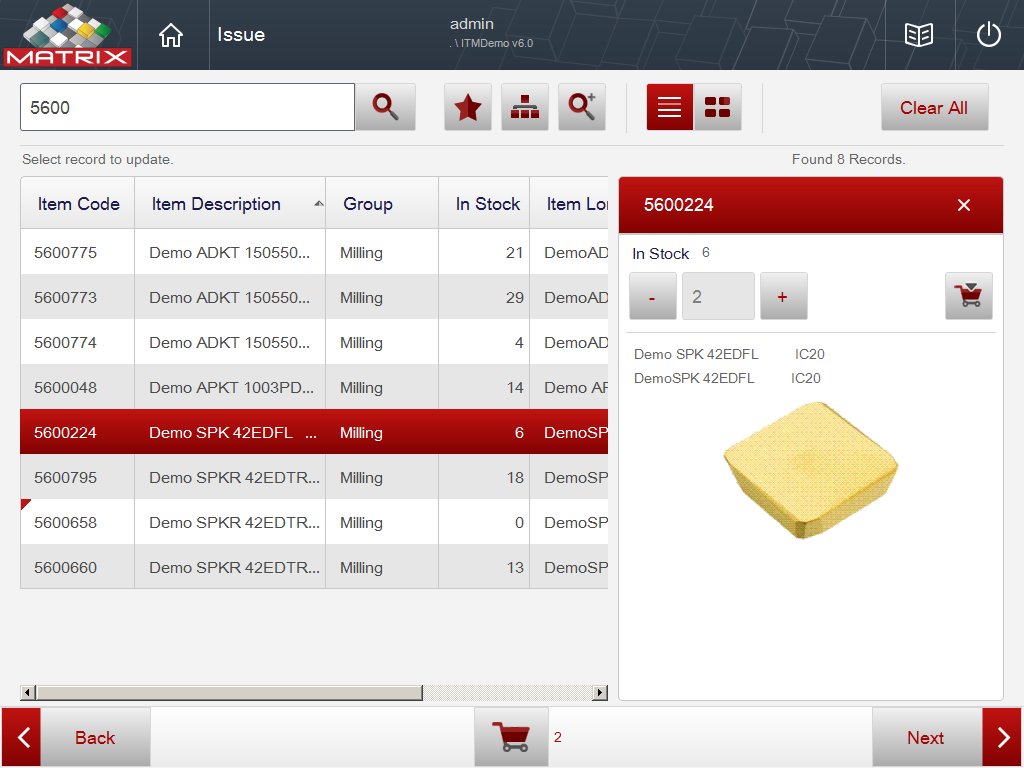

2. Loat Items in Shopping Basket
Issue all items with one click. Track Durable Items. Know where your tools are at all times.

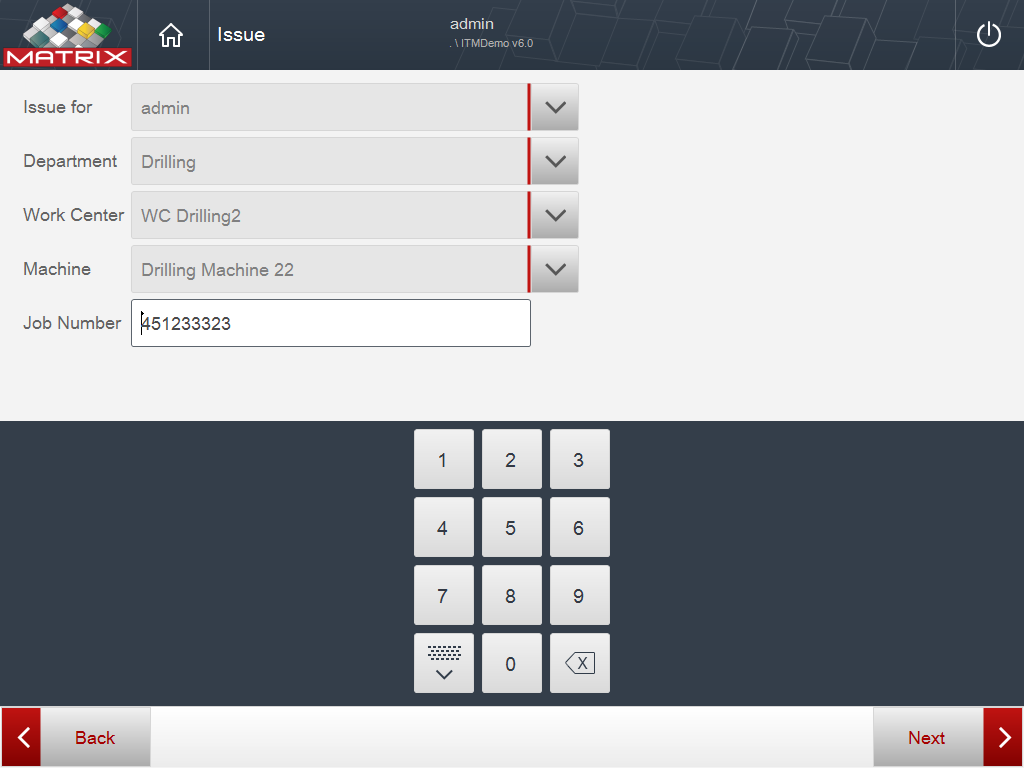

3. Right Tool for the Job
Limit access to tools by job or part number
4. Right Costing for Each Job
Reverse incorrect issue transactions
Matrix Cabinets
Contact Our Sales Rep
View DLS 13D Specs

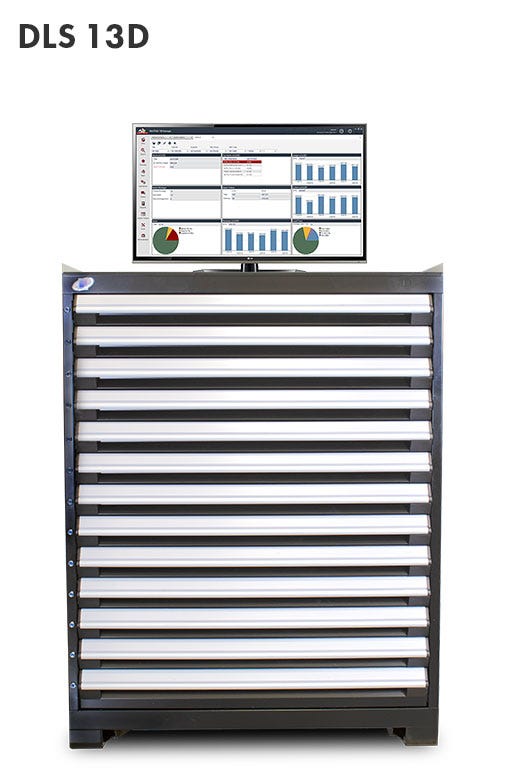

DLS 13D
• Sturdy industrial cabinet with electronically locked drawers
• 2 versions: Main with touchscreen POU or auxiliary (add-on)
• Load weight per drawer: approx. 400lbs
• Manual override in case of power failure
• Cabinet color: Black
• Direct network connection and single power supply 110-230V
• Cabinet dimensions: 36” W x 46”H x 27” D
• Drawer dimensions: 12-3”
High & 1-4” High
Economical solution with flexible drawer partitions suitable forsmall and large items.
View DLS 8D Specs

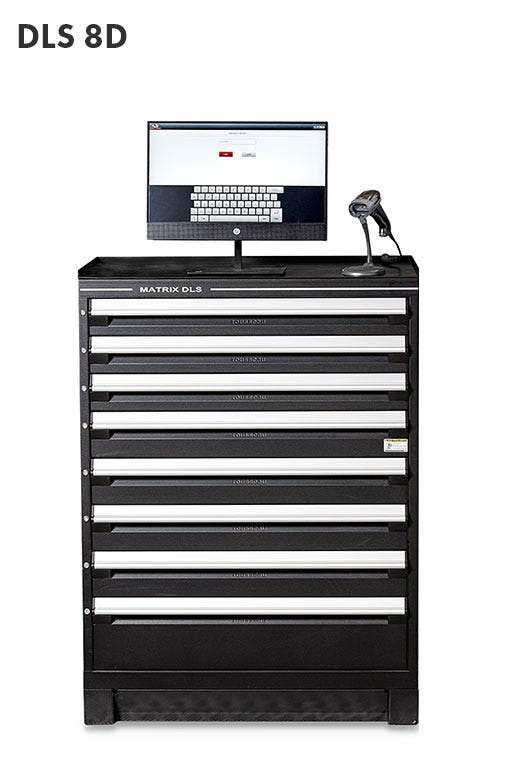

DLS 8D
• 2 versions: TOUCH (stand- alone) and POD (add-on)
• TOUCH – supplied with all- in-one pc-touchscreen, bar code reader, network switch and management
software
• 8 Drawers per cabinet (H): 3 x 101mm/4”; 4 x 127mm/5”; 1 x 203mm/8”
• Cabinet dimensions 915mm/36” (W) x 610mm/24”
(D) x 1220mm/48” (H)
Economical solution with flexible drawer partitions suitable forsmall and large items.
View ECO Locker Specs

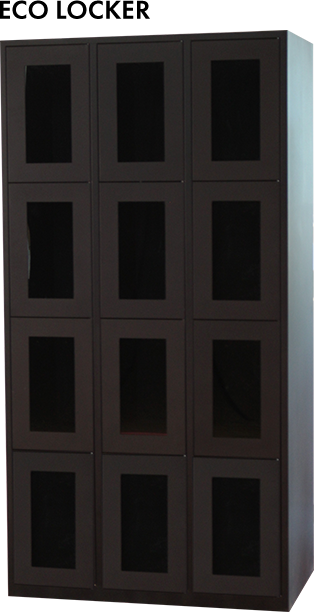

ECO Locker
• Transparent doors for easy
review of product
• 18-Door configuration
• Load weight per shelf: 50lbs
• Manual override in case of power failure
• Cabinet color: Black
• Direct network connection and single power
• Supply 110-230V
• Can be set up as main unit
with touchscreen
Transparent doors for easy review of the product
View Helix Specs

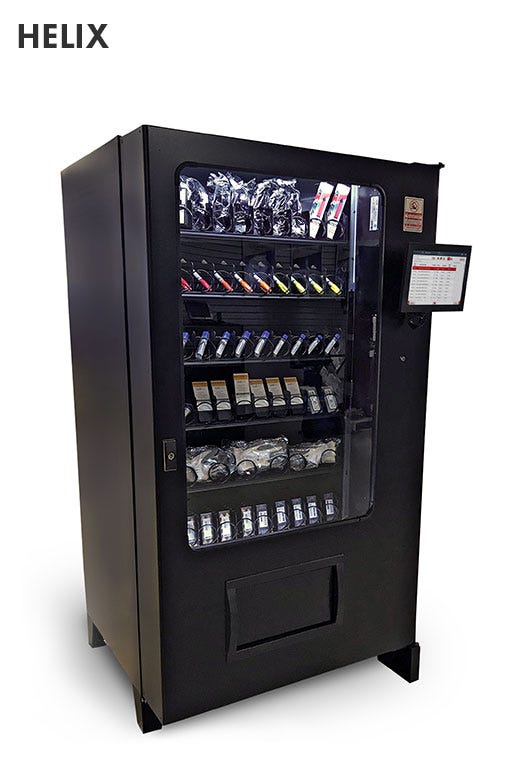

Helix
• High Security-100% Accountability
• Dimensions: 73” Tall x 38.5” Wide x 40” Deep
• Weight: Approx. 650 lbs unstocked
• Holds up to 60 SKUs
• Provides secure point-of use distribution
• 2 versions: Main with Touchscreen POU or Aux (add-on)
• 73” Tall x 38.5” Wide x 40” Deep
• Cabinet Color: Black
• May require repackaging
• Runs on Matrix Software
• **Additional sizes available upon
request
Provides secure point-of use distribution, holds up to 60 SKUs.
View Maxi Specs

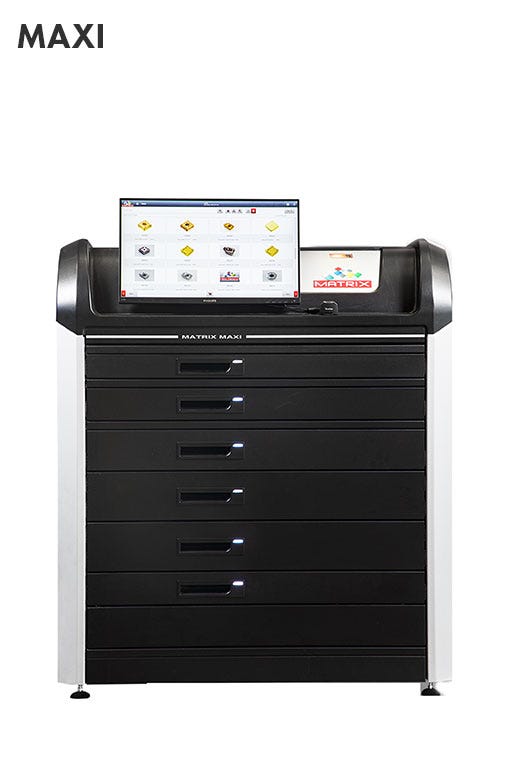

Maxi
• Drawers per cabinet: 1-12 [depends on drawer heights and quantity of Auto-Locks]
• Drawer heights (net): 50mm/2”, 75mm/2.9”, 100mm/3.9”, and 125mm/4.9”
• Load weight per drawer: up to 50kg/110lb (90kg/190lb for Jumbo drawer)
• Cabinet weight varies depending on the number of drawers and Auto-Locks: MAXI with 4 drawers
• Cabinet frame includes 4 adjustable legs
and a removable front panel for forklift access
• Cabinet dimensions 1180mm/47” (W)
x 752mm/30” (D) x 1469mm/58” (H)
Stands tall with a large capacity, small footprint and a sleek, ergonomic design.
View Mini Specs

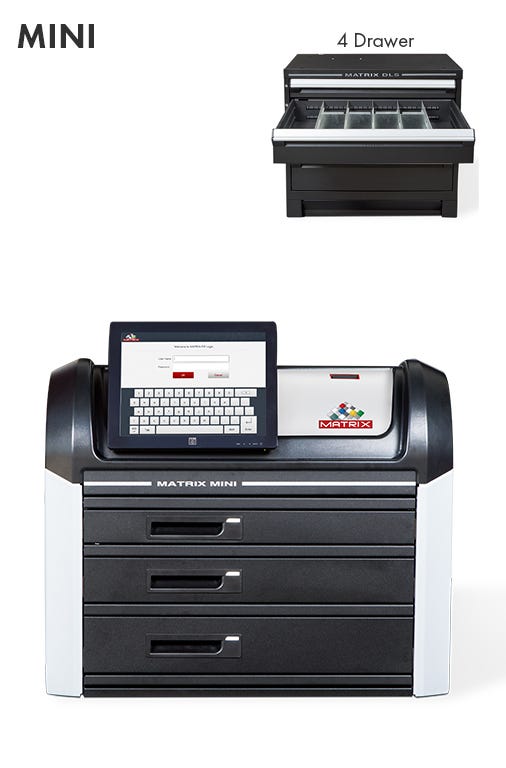

Information about machine
• Drawers per cabinet: 1-5 [depends on drawer heights and quantity of Auto-Locks]
• Drawer heights (net): 50mm/2”, 75mm/2.9” and 100mm/3.9”
• Load weight per drawer: up to 20kg/44lb
• Cabinet weight varies depending on number of drawers and Auto-Locks: MINI with
4 drawers is ~165kg/365lb
• Cabinet dimensions 860mm/34” (W)
x 581mm/23” (D) x 800mm/32” (H)
MINI can go just about anywhere, sitting atop a workbench, lockable MATRIX trolley or DLS4D.
View Toolport Specs
DLS-V
• Controlled by MATRIX software with the option to serialize each tool assembly
• Up to 3 racks per drawer
• Rack options:
• 6 holes rack for HSK A63 / C6 / 40T
• 8 holes rack for 30T
• Adjustable rack height
• Sits atop DLS 4D or work bench
• Available as POD version
Large capacity / small footprint 800 inserts (4D bench-top model) or 1600 inserts.
View DLS-V Specs

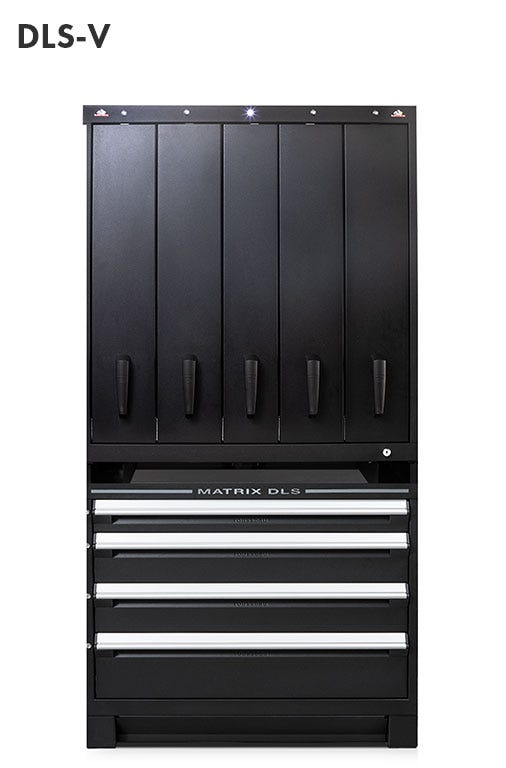

DLS-V
• Controlled by MATRIX software with the option to serialize each tool assembly
• Up to 3 racks per drawer
• Rack options:
• 6 holes rack for HSK A63 / C6 / 40T
• 8 holes rack for 30T
• Adjustable rack height
• Sits atop DLS 4D or work bench
• Available as POD version
Reconfigurable transparent doors and LED lighting.
View WIZ Specs

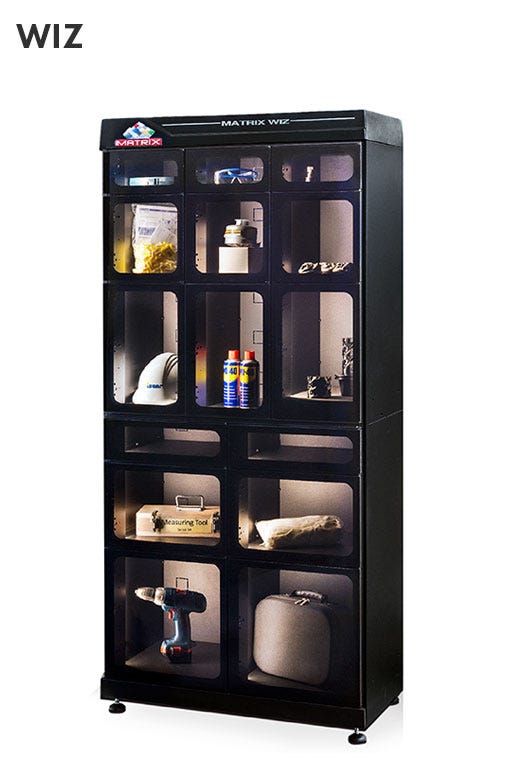

WIZ
• Reconfigurable
• Sleek modern design, transparent doors and LED lighting
• “DIY” installation
• WIZ cabinet comprises: Hood, Top and bottom frames, Base with forklift access
• 677mm/27” (W) x 614mm/24”
(D) x 1448mm/57” (H)
• Available as a POD (add-on)
version
• Manual override in case of
power failure
Runs on Matrix Applications
Large capacity / small footprint 800 inserts (4D bench-top model) or 1600 inserts.
MATRIX POUCH
Always the Right Tools for the Job!
• MATRIX Real Time Location System tracks production assets that move around on the shop floor • Reduced time locating production assets
• Increased utilization of production assets
• Easy to implement
• RTLS hardware includes:
• BLE (Bluetooth low energy) beacon - attached to each tracked asset - transmits a signal with a unique ID
• Gateway - installed at each location, like machine tool or tool crib - receives the beacon’s signal and transmits location data to MATRIX
• Track > Gauges; Measuring Devices; Test Equipment, Production Fixtures etc.
• Requires MATRIX software license v6.5 or higher
MATRIX RTLS
100% Visibility Anywhere on the Shop Floor
MATRIX Pouch reads Balluff chip on tool adaptor
• Data string with tool assembly parts is transmitted to MATRIX
• Quick “error proof” access to approved tools
• Compatible with common adaptor types and sizes
• Requires MATRIX software license v6.5 or higher
Tool Crib Management from the Palm of Your Hand!
MATRIX app manages traditional warehouse and tool room
• Records transactions via Wi-Fi connection to networked MATRIX data base
• Compatible with any Android device, preferably with a built-in 1D/2D scanner
• Requires MATRIX software license v6.5 or higher
